Increasingly used in industrial areas such as filtering, insulation, consumer durables, heating and cooling industry, etc., aluminum increases the productivity in areas where it is used with its light weight and its high strength properties provided by its mechanical values, and it is becoming a more preferred metal day by day.

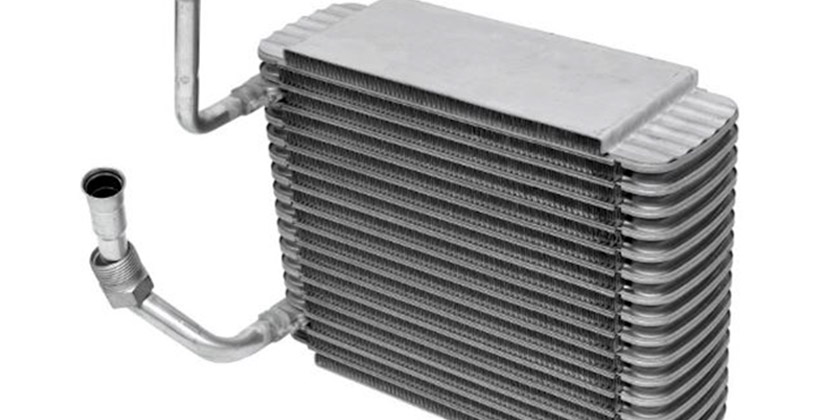

Evaporator

evaprotor

An evaporator coil is an important component of the refrigerator. Contribution of aluminum flat rolled products and properties expected from these products are:

  • Excellent thermal conductivity
  • Lightness, strength and small footprint in the units manufactured
  • High corrosion resistance
  • Being easy to process

Properties we recommend for aluminum flat rolled products used are;

Alloys:  1000 / 5000 / 8000 series

Condition: H0 / H19

Thickness (mm): 0.090 - 0.3 mm

Width (mm): Maximum 2200

Surface: Flat

Internal Diameter (mm): 152 /150 / 508 mm

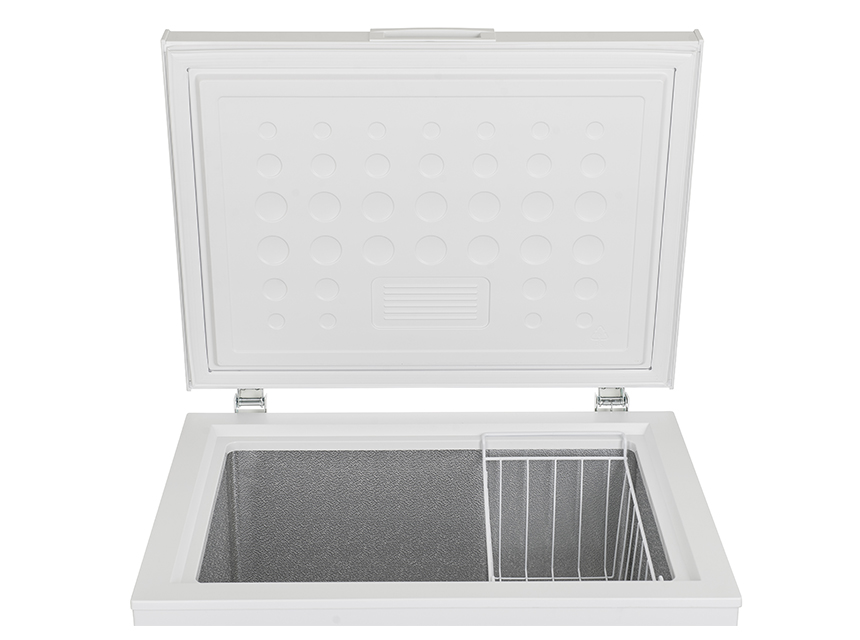

Deep Freeze

akordeon_endustriyel_derin_dondurucu

Aluminum is generally used as an embossed surface on the internal surfaces of deep freezers. The embossed aluminum, which allows for the rapid and efficient cycling of cool air, provides high heat transfer thanks to its conductivity.

Properties we recommend for aluminum flat rolled products used are:

Alloys: 1000 / 3000 series

Condition:  H14 / H18

Thickness (mm): 0.30 mm (min. 0.30 mm for embossed surface)

Width (mm): Maximum 2200

Surface:  Embossed / Flat

Internal Diameter (mm): 508 mm

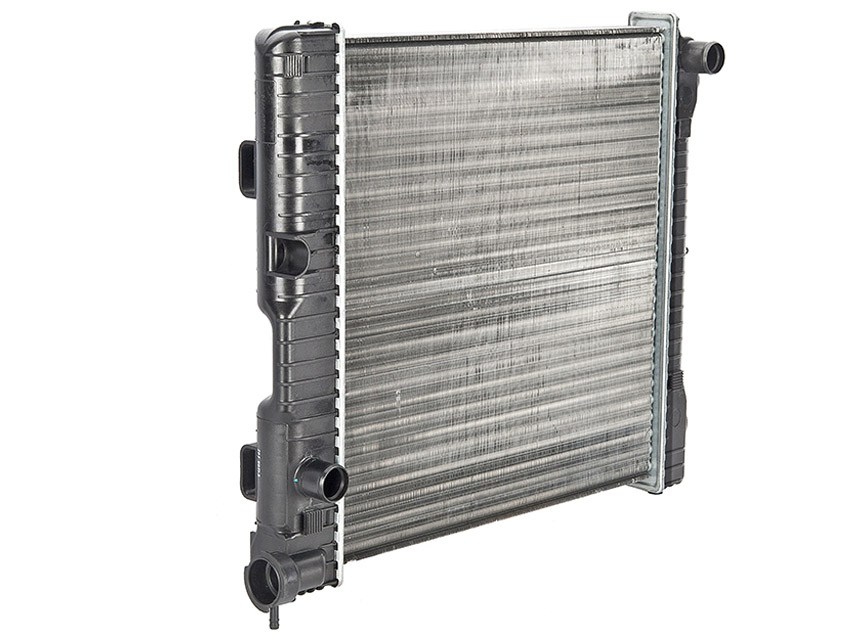

Fin Stock Foil

finstock-folyosu

Used in the manufacturing of cooling systems, refrigerators, automotive radiators, condensers, air conditioners, evaporators, heat exchangers, etc. Properties expected from aluminum fin stock foil are:

  • Light weight
  • Minimum usage of metal during production and provision of maximum surface
  • Rapid thermal conductivity and dispersion
  • Resistance against high temperature and maintaining its form without being melted
  • Ensuring efficient use of energy
  • Contributing to the general efficiency and strength of the products

Product details we recommend for painted aluminum fin stock foils are:

Alloys: 8006, 1050

Thickness (mm): 0.060 – 0.400

Width (mm): Maximum 1700

Surface: Bright/Bright

Internal Diameter (mm): 76, 150, 152, 300, 400

External diameter (mm)  Max. 1400

Standards and Tolerances: All aluminum products of ASAŞ are manufactured as per the European and American standards (EN, ASTM, AA, DIN, etc.). Certificates of the products manufactured as per the international standards are available on the packages.

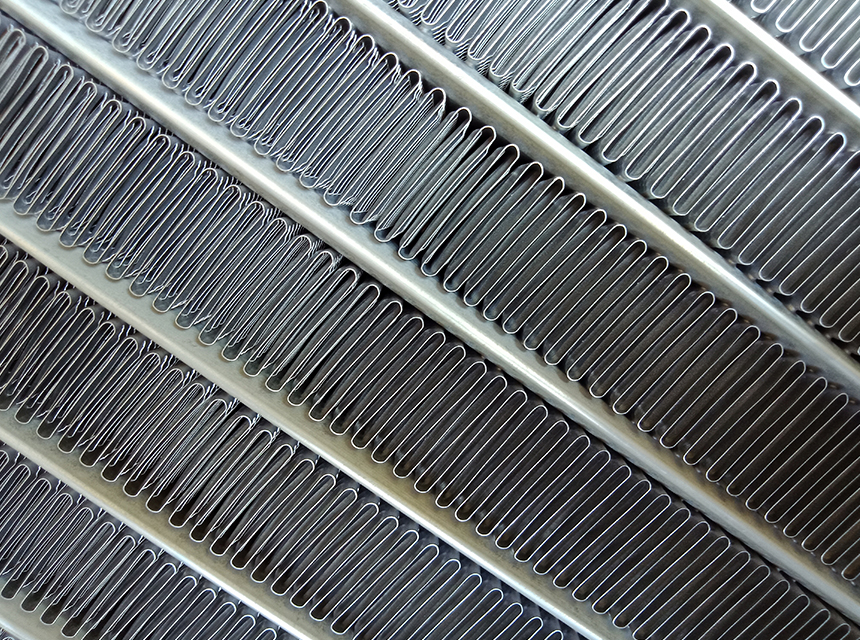

Fin Stock Brazing Foil

akordeon_endustriyel_finstockbrazing

Fin stock brazing foil is used for the manufacturing of automotive radiators. Properties expected from aluminum fin stock brazing foil are:

  • Light weight
  • Minimum usage of metal during production and provision of maximum surface
  • Rapid thermal conductivity and dispersion
  • Resistance against high temperature and maintaining its form without being melted
  • Ensuring efficient use of energy
  • Contributing to the general efficiency and strength of the products

Product details we recommend for painted aluminum fin stock brazing foils are:

Alloys: 3003

Thickness (mm): 0.070 – 0.140

Width (mm): Maximum 1700

Surface: Bright / Bright (without lubricant)

Internal Diameter (mm): 76, 150, 152, 300, 400

External diameter (mm): Max. 1850

Standards and Tolerances: All aluminum products of ASAŞ are manufactured as per the European and American standards (EN, ASTM, AA, DIN, etc.). Certificates of the products manufactured as per the international standards are available on the packages.

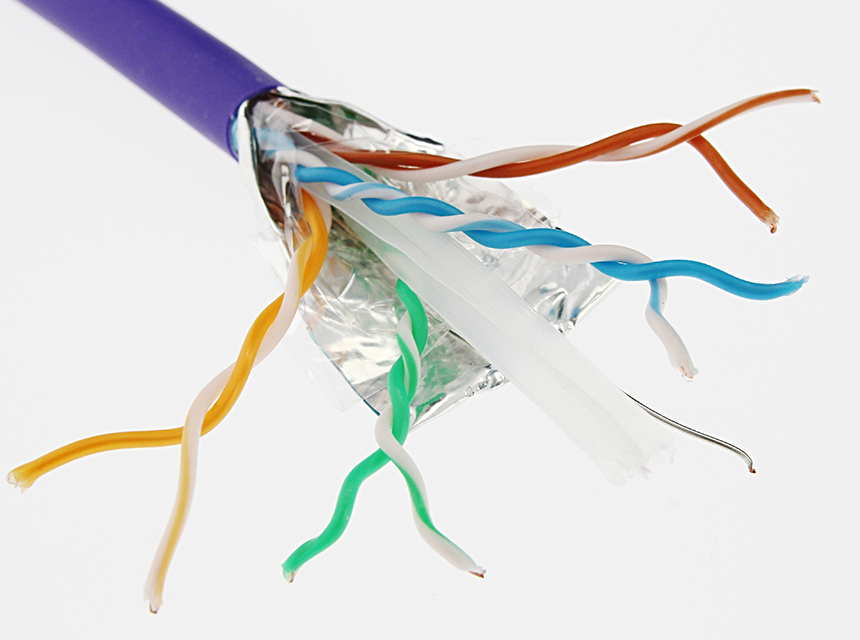

Cable Foil

akordeon_endustriyel_kablo

Used in cable industry:  Properties expected from aluminum cable foil are:

  • Resistance against high temperature and corrosion
  • Resistance against wear
  • High conductivity
  • Long term protection

Product details we recommend for painted aluminum cable foils are:

Alloys: 1050, 8079

Thickness (mm): 0.007 – 0.500

Width (mm): Maximum 1700

Surface: Bright/Bright or Matt/Bright

Internal Diameter (mm): 76, 150, 152, 300, 400

External diameter (mm): Max. 1000

Standards and Tolerances: All aluminum products of ASAŞ are manufactured as per the European and American standards (EN, ASTM, AA, DIN, etc.). Certificates of the products manufactured as per the international standards are available on the packages.

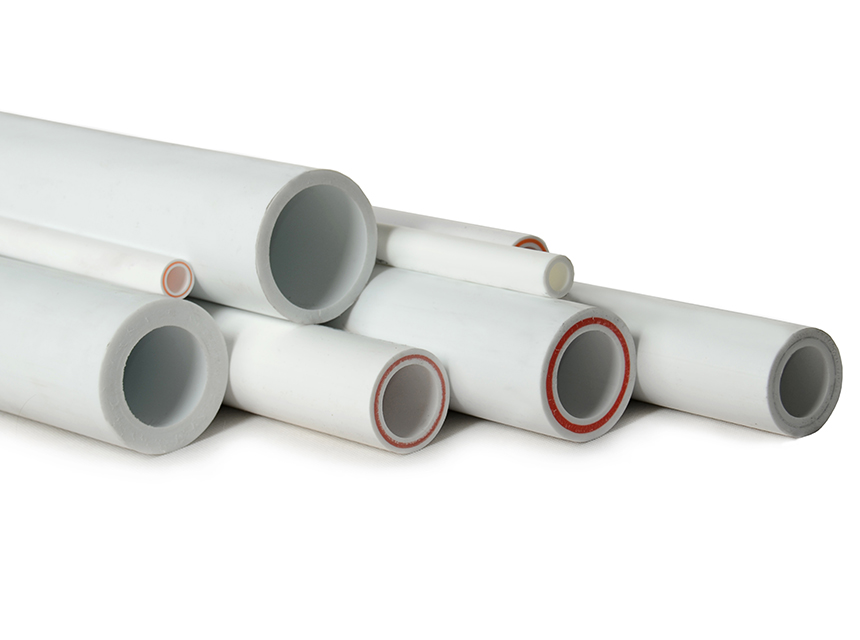

Stable/Rigid Pipe Foil

akordeon_endustriyel_stabil_botu

Used in fixed pipe industry, central air conditioning systems, and manufacturing of solar system pipes. Properties expected from fixed pipe foil are:

  • Prevention of deformation on the pipes thanks to the resistance against high temperature
  • Provision of sound insulation
  • Provision of a smooth surface
  • Protecting the pipe and the media inside the pipe against freezing, prevention of condensation
  • Creating a barrier against vapor and controlling the dispersion of the vapor

Product details we recommend for fixed pipe foil are:

Alloys: 8006, 8079

Thickness (mm): 0.090 – 0.150

Width (mm): Maximum 1700

Surface: Bright/Bright

Internal Diameter (mm): 76, 150, 152, 300, 400

External diameter (mm): Max. 1800

Standards and Tolerances: All aluminum products of ASAŞ are manufactured as per the European and American standards (EN, ASTM, AA, DIN, etc.). Certificates of the products manufactured as per the international standards are available on the packages.

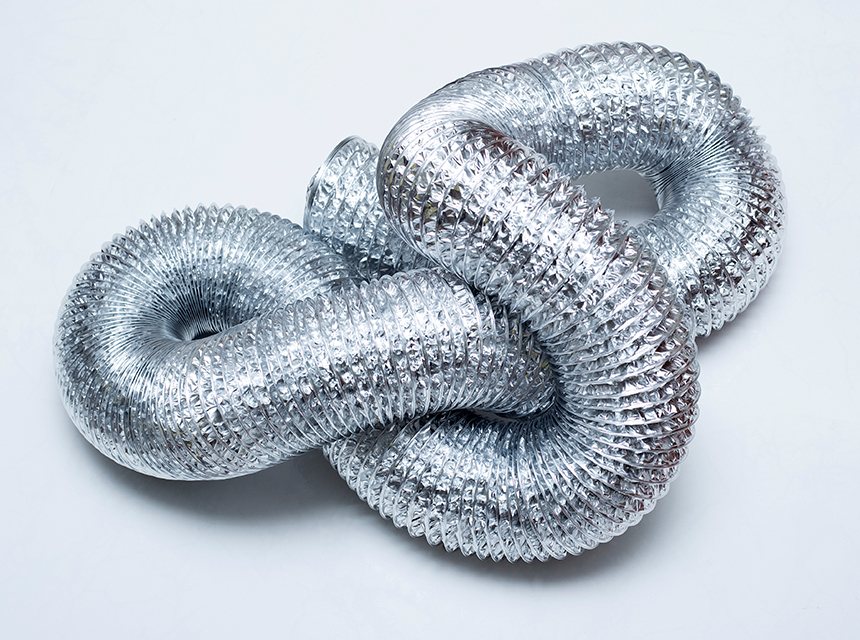

Flexible Pipe Foil

akordeon_endustriyel_esnekboru

Used in flexible pipe industry for heating and ventilation applications. Properties expected from flexible pipe foil are;

  • Strength
  • Resistance against high temperature and fire
  • Sound insulation
  • Flexibility and capability to be compressed up to 10% of its total length

Product details we recommend for flexible pipe foil are:

Alloys: 8079

Thickness (mm): 0.040 – 0.150

Width (mm): 60-200

Surface:  Bright/Bright

Internal Diameter (mm): 76, 150, 152, 300, 400

External diameter (mm): Max. 1800

Standards and Tolerances: All aluminum products of ASAŞ are manufactured as per the European and American standards (EN, ASTM, AA, DIN, etc.). Certificates of the products manufactured as per the international standards are available on the packages.

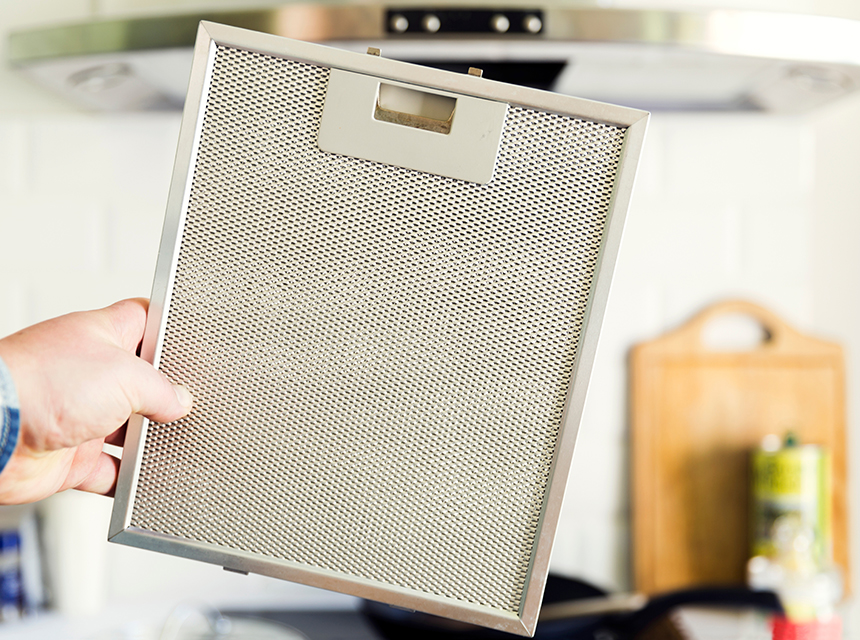

Filter Foil

akordeon_endustriyel_filtre

Used in stove hoods, commercial and industrial applications, and equipment that are sensitive against dust Properties expected from aluminum filter foil are:

  • High strength
  • Light weight
  • Easy to clean
  • Capability to filter solid, gas and liquid materials

Product details we recommend for filter foil are:

Alloys: 1050, 3003, 8006

Thickness (mm): 0.100 – 0.500

Width (mm): 40-200

Surface: Bright/Bright

Internal Diameter (mm): 76, 150, 152, 300, 400

External diameter (mm): Max. 1800

Standards and Tolerances: All aluminum products of ASAŞ are manufactured as per the European and American standards (EN, ASTM, AA, DIN, etc.). Certificates of the products manufactured as per the international standards are available on the packages.

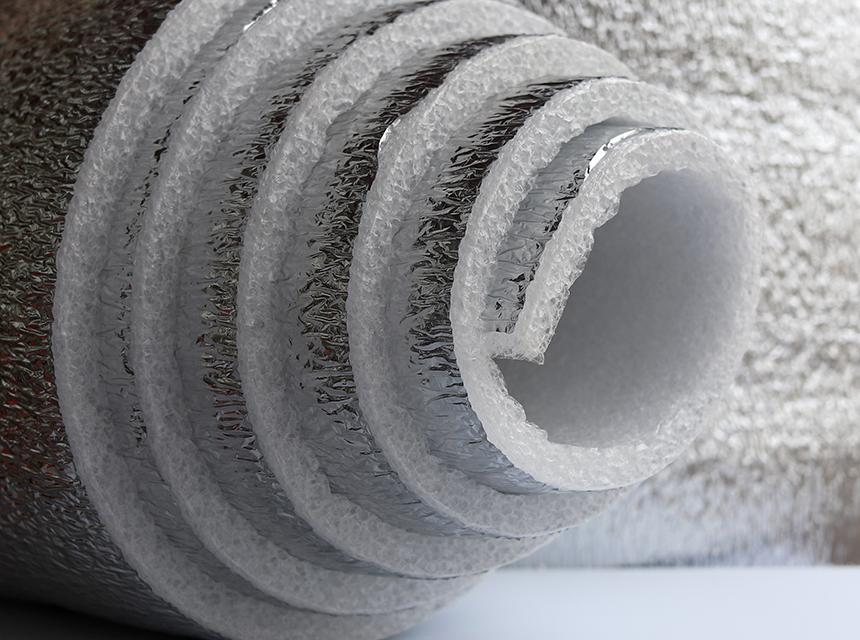

Insulation Foil

akordeon_endustriyel_izolasyon

Used in construction sites, and on the insulation of ceiling and piping. Properties expected from aluminum insulation foil are:

  • High resistance against external factors
  • Reflective surface that prevents heat loss and barrier function
  • Protection against fire
  • Plasticity
  • Provision of extra protection when it is lacquered
  • Reduction of construction costs thanks to the savings in material
  • Capability to be used with plastic and fiber materials thanks to its easy adhesion

Product details we recommend for insulation foil are:

Alloys: 8079, 8006

Thickness (mm): 0.020 – 0.050

Width (mm): 300-1200

Surface: Bright/Matt or Bright/Bright

Internal Diameter (mm): 76, 150, 152, 300, 400

External diameter (mm): Max. 1000

Standards and Tolerances: All aluminum products of ASAŞ are manufactured as per the European and American standards (EN, ASTM, AA, DIN, etc.). Certificates of the products manufactured as per the international standards are available on the packages.
