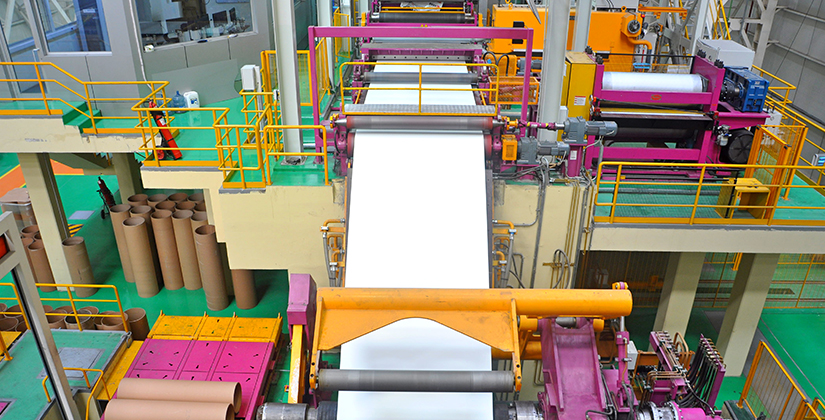

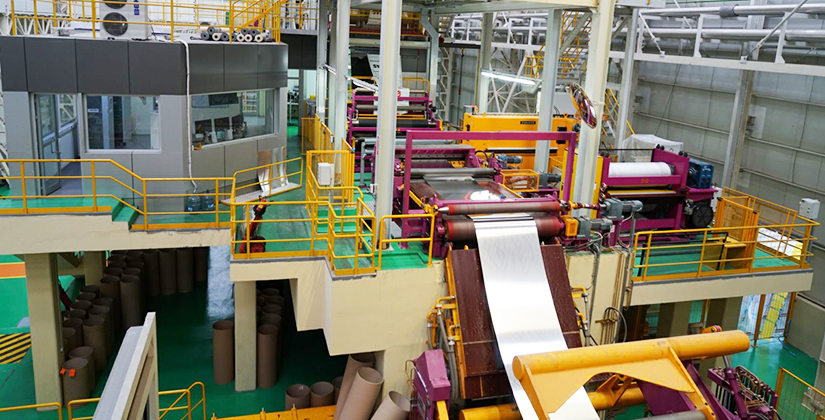

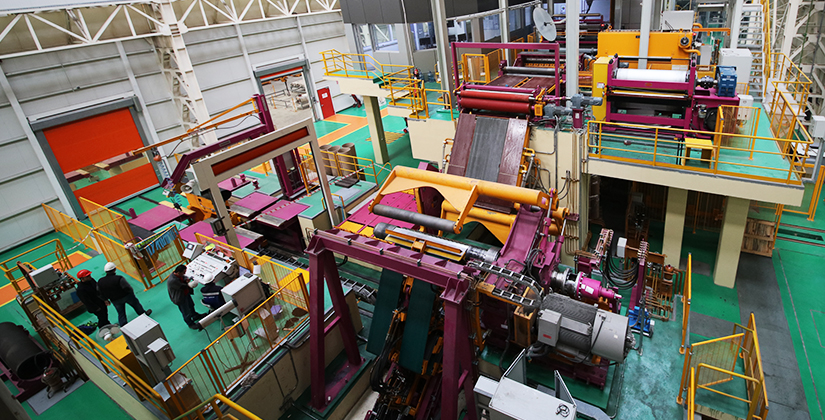

Coating Line
Key Features
- One of the widest coating lines with 2.100 width
- Ability to coat 4 layers in a single pass
- Wide range surface solutions with cold lamination, embossing and electrostatic oiling systems
- Superior surface quality with inspection system
- Low carbon foot print with regenerative thermal oxidizer
ASAŞ, one of the biggest consumers of coated aluminium coils in its Aluminium Composite Panel Production Line in Europe, has carefully invested on one of the widest coil to coil color coating line.
One of the widest coil coating line with wide range of surface solution for different market demand
Besides being able to coat 4 layer in a single pass, the line is equipped with hot and cold lamination system, embossing unit and electrostatic oiling unit in order to serve all possible surface solutions to the market.
High accuracy in coating thickness and defect free surfaces, as the fundamentals of customer’ satisfaction for coated coils, are achieved by three dry coating thickness gauge and surface inspection system in the line.
The line includes two cleaning section. Pre-cleaning section prepares the necessary strip surface for the tension leveling process while the main cleaning section (consists of an alkaline cleaning and flash pickling section) treats the strip surface for specified coatings. Thus, we achieve best possible surface quality and coating adhesion.
The last but not the least, ASAŞ significantly lower carbon footprint and cost of coating operations by investing in regenerative thermal oxidizer (RTO) at the curing oven.
Coated Product Specifications
Alloy: 1xxx/3xxx/5xxx/8xxx
Temper: Soft 0/H4X
Inner Diameter: 400mm/508/610mm
Type of the dye: PE, HDPE, PU, PUR-PA, PE-PA, PVDF, FEVE-EP
* RAL, metallic/custom colours and different patterns can be applied upon request.
* Stucco embossed finish can be applied up to 1,25mm thickness.
* Protective film (PE) can be laminated upon request.
* PVC film lamination is also available.
* Please contact your sales represantatives for further information.
|
Coated Coil |
Thickness |
Width |
Outer Diameter |
|
|
|
|
|
|
|
2,00mm |
500-2.100mm |
max. 2.600mm |
|
|
|
|
|
|
Coated Strip |
Thickness |
Width |
Outer Diameter |
|
|
|
|
|
|
|
2,00mm |
25-500mm |
max. 2.600mm |
|
|
|
|
|
|
Coated Sheet |
Thickness |
Width |
Length |
|
|
|
|
|
|
|
0,20mm |
760-2.100mm |
500-12.000mm |
